TRA-08 Android
- HOME
- /
- TRA-08 Android

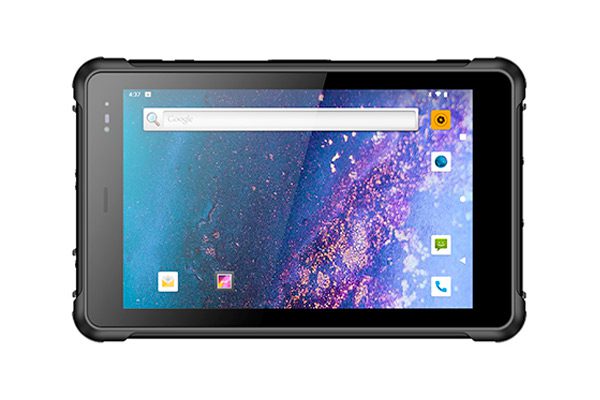

TRA-08 Android
- 8'' WXGA(800 x 1280)500/1000 nits TFT LCD.
- MT6769, 2 ARM® Cortex-A75 2.0 GHz + 6 ARM® Cortex-A55 1.8 GHz.
- WIFI5 802.11(a/b/g/n/ac), Bluetooth 5.0.
- Optional 1D/2D Barcode Scanner、NFC/RFID.
Features:
8” WXGA(800 x 1280)500/1000nitsTFTLCDMT6769 2 ARM® Cortex-A752.0GHz+6ARM® Cortex-A55 1.7 GHz
WIFI5 802.11(a/b/g/n/ac) Bluetooth5.0Optional 1D/2D Barcode Scanner NFC/RFIDSupport GPS/BeiDou/GLonass/GalileoCorning Gorilla Glass III, Optional
AG+AF+Wet Hand/Glove
9800mAh large-capacity batteryStandard IP65, optional IP67Android 12

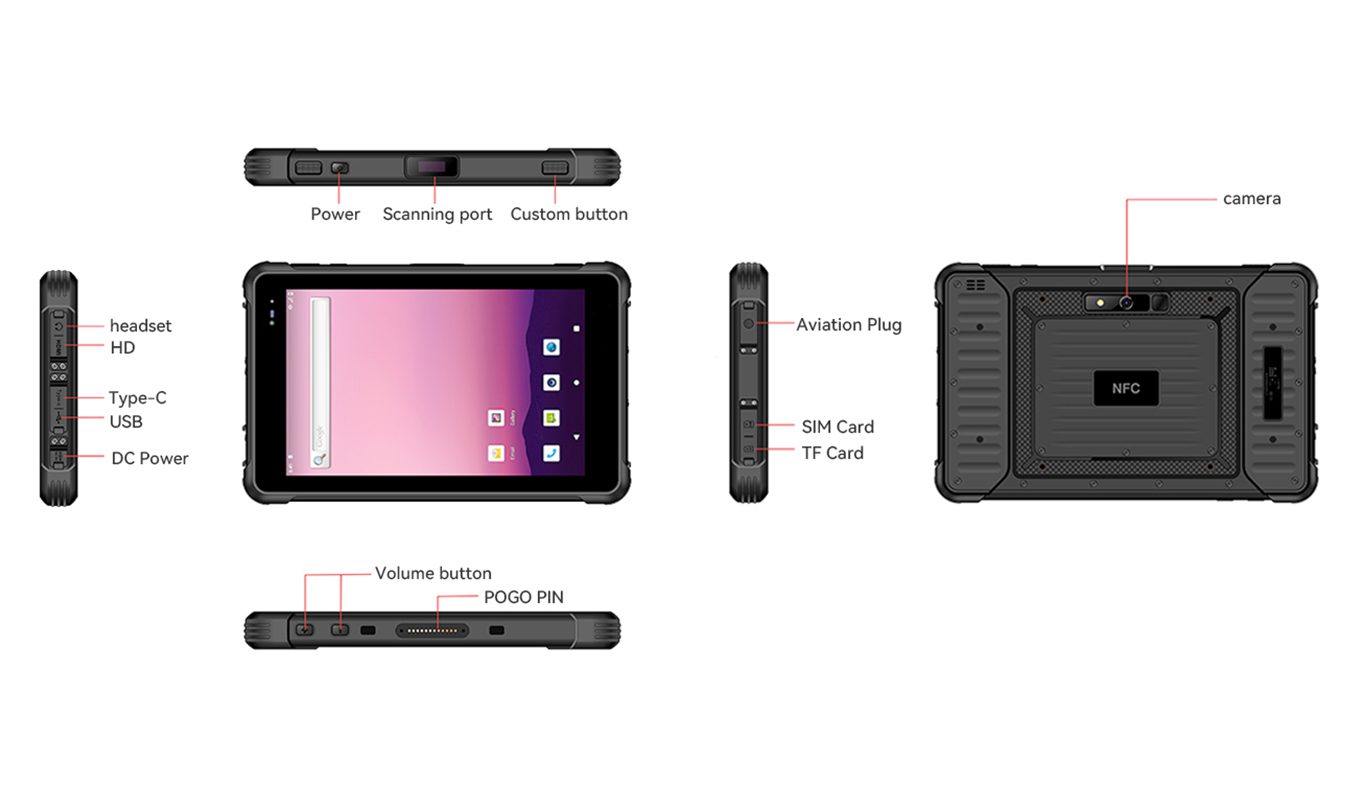

Dimension of 8 Inch TRA-08 Tablet
Benefits of 8 Inch TRA-08 Tablet
- industrial android tablet support GPS/BeiDou/GLonass/Galileo.
- Corning Gorilla Glass III, Optional AG+AF+Wet Hand/Glove.
- 9800mAh large-capacity battery.
- Standard IP65, optional IP67 Compliant, Drop 1.2m.
- Android 12.
Six views of TRA-08 Tablet
Features of 10.1" Windows Tablet TR - T07 Rugged PC
Support for Windows 11 Pro system
Optional 4G all network communication, Integrated WiFi, Bluetooth, and other communication modes
5000mAh battery, 9 hours of machine endurance
IP65 high protection level, in accordance with MIL-STD-810G, ATEX-B certified
Support GPS, Glonass, GNSS, and more accurate positioning
Support 2D, NFC, Fingerprint, and other functional modules optional.
Rear 8.0 million pixel autofocus camera and Front 5.0 million pixel camera, easy to collect image and video information

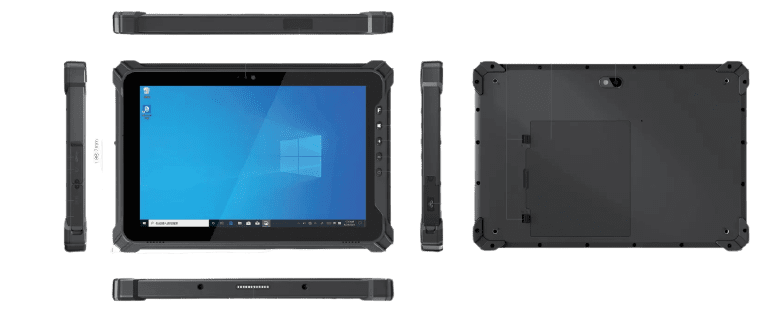

Six views of 10.1" Windows Tablet EM-117) Rugged PC
Specifications of 10.1" Windows Tablet EM-117) Rugged PC
| Basic parameters | |
| Dimension | 274.9 x 188.7 x 23.1mm |
| Weight | device unit 1140g |
| Product Color | black |
| LCD | 10.1 inch TFT 16:10, 1920×1200, 400nits optional: 800×1280, 700nits |
| Touch Panel | 10 point capacitive touch screen |
| Camera | Front 5.0MP Rear 8.0MP |
| I/O | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card, TF Card (Three in one card holder), HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1 |
| Extension interface (3 choose 1) | RJ45 (10/100M) x 1, DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output Type-C 19V/3.42A |
| Data Collection | |
| 2D | Optional |
| NFC | OptionOptional, support ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, ISO/IEC mifare protocolal |
| Battery | |
| Capacity | 5000mAh/7.6V |
| Type | Removable Li-polymer battery |
| Endurance | 6hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
| Performance parameter | |
| CPU | Intel® Celeron® Processor N5100 |
| OS | Windows 11，Optional Windows 10 |
| RAM | 8GB |
| ROM | 128GB |
| Communication | |
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT5.0 |
| 3G/4G (Optional) | LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40 WCDMA: B1/B5/B8, GSM: B3/B8 |
| GNSS | Built-in, GPS, Glonass |
| Reliability | |
| Operate Temperature | -20 ℃ ~ 60 ℃ |
| Store Temperature | -30 ℃ ~ 70 ℃ |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810G, ATEX-B certified |
| Drop Height | 1.22m |
Accessories 10.1" Windows Tablet EM-117) Rugged PC
