TRA-10 Android

TRA-10 Android

  • 10.1" WXGA (1280 x 800) 450/1000 nits TFT LCD;
  • MTK MT6771 2.0 GHz;
  • WiFi 802.11a/b/g/n/ac, Bluetooth 4.0, LTE;
  • 5MP Front and 13MP Rear Camera design for industrial android tablet;
  • Optional 1D/2D Barcode Scanner & NFC/RFID/ID card.
  • For more Geshem tablets from our rugged tablet manufacturer at bulk price, inquiry now.
specification
industrial-android-tablet-removebg-preview

Features:

  • 10.1'' WXGA (1280 x 800) 450/1000nitsTFT LCD
  • MTK MT6771 2.0 GHz
  • WiFi 802.11a/b/g/n/ac, Bluetoothv2.1+EDR/v3.0+HS/v4.1 LE, LTE
  • Optional 1D/2D BarcodeScanner&NFC/RFID/ID card
  • Up to 3 GNSS, GPS+GLonass+Galileo/BD
  • RS-232 COMPort + 10/100/1000GbERJ45
  • Built-in 10000mAh removablebattery
  • IP67 Compliant, Drop 1.2m
  • List ItemAndroid 11 os with GMScertificate

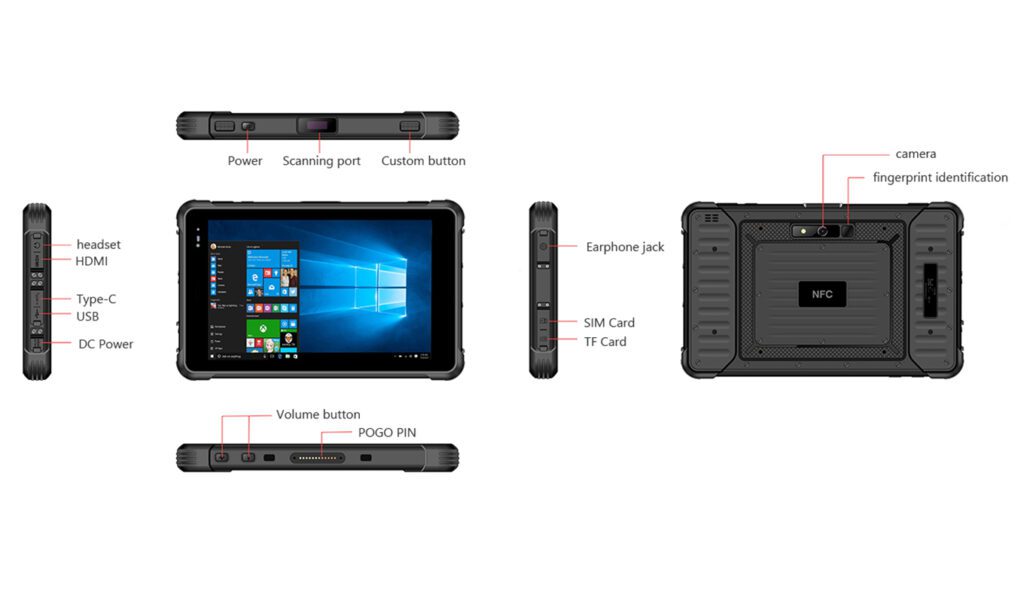

Dimension of TRA-10 Android

Benefits of TRA-10 Android

  • 10.1" WXGA (1280 x 800) 450/1000 nits TFT LCD
  • MTK MT6771 2.0 GHz
  • WiFi 802.11a/b/g/n/ac, Bluetooth 4.0, LTE
  • 5MP Front and 13MP Rear Camera
  • Optional 1D/2D Barcode Scanner & NFC/RFID/ID card
  • Up to 3 GNSS, GPS/BD/GLonass
  • RS-232 COM Port + 10/100/1000 GbE RJ45
  • Built-in 10000mAh removable battery
  • IP67 Compliant, Drop 1.2m
  • Android 10 for custom industrial android tablet

Accessories of TRA-10 Android

Power adapter of rugged
tablet 8 inch

Device of 8 inch rugged tablet

Hand strap of rugged 8 inch tablet

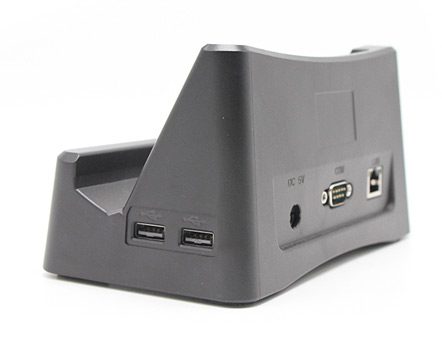

Docking of 8 inch rugged tablet

Vehicle charging bracket of rugged tablet 8 inch

Vasa stand of rugged 8 inch tablet

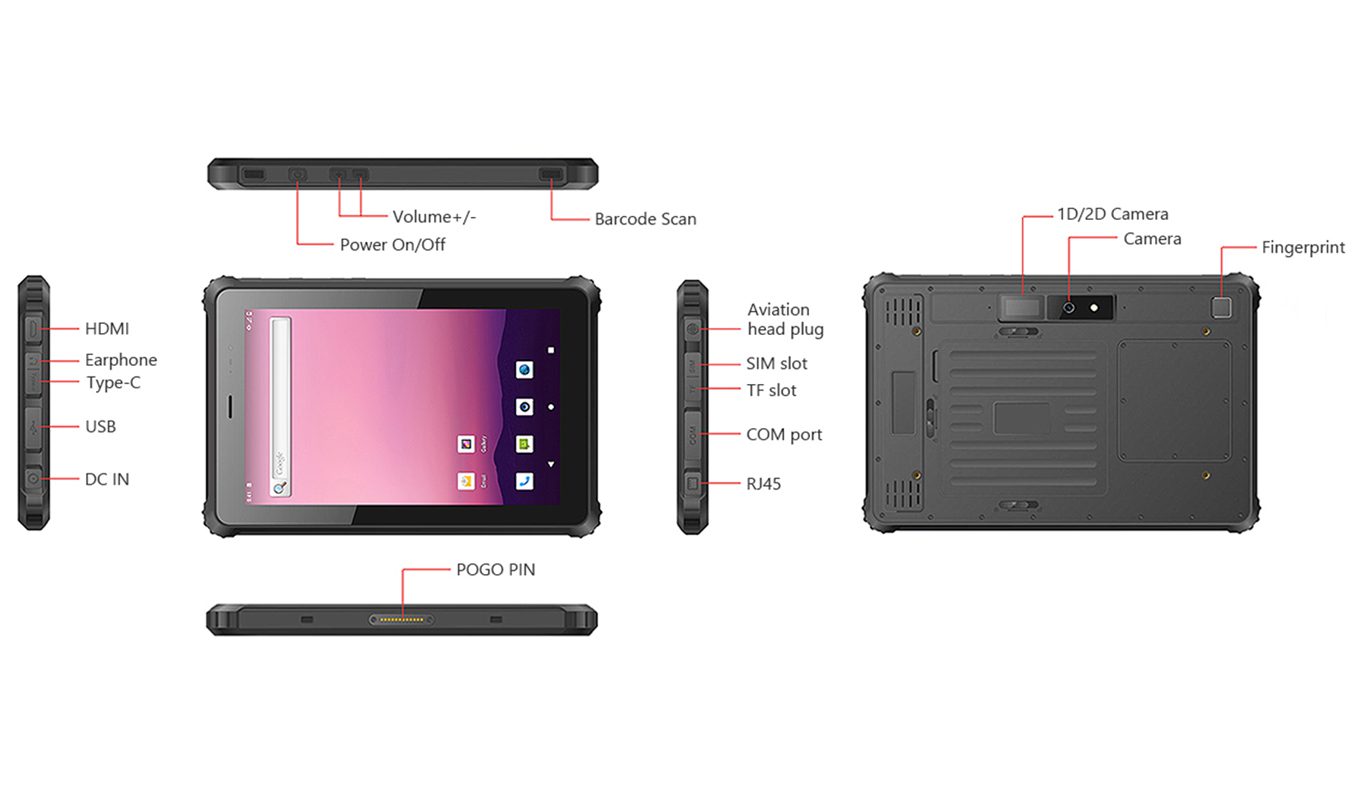

Six views of TRA-10 Android

Accessories 10.1" Windows Tablet EM-117) Rugged PC

Untitled_design_-_2023-10-03T170854.151-removebg-preview
Untitled_design_-_2023-10-03T170836.407-removebg-preview
Untitled_design_-_2023-10-03T170820.703-removebg-preview

Tirotech Rugged is a leading provider of world-class mobile technology devices designed to thrive in challenging environments, with a strong emphasis on user-friendly solutions.

Facebook Instagram

Quick LINKS

CONTACT

Copyright © 2024 TRIOTECH RUGGED All Rights Reserved.

Scroll to Top

TPC-GS1081T

10.1” MTKMT67712.0GHz
RuggedTablet
System Hardware
CPU MTK MT6771 Octa-core 2.0GHz
Memory 4GB
Storage 64GB
Camera 5MP front camera with fixed focus 13MP rear camera with auto focus and LED light
Speaker Dual speaker, 1.2W/8Ω
MIC Dual MIC
Earpiece Waterproof earpiece
Button Power button, Volume +/-, Customize function key Barcode scanner shortcut key
LED Indicator Charging indicator
Sensor G-sensor, Gyroscope, E-compass, Distancesensor, Motor, Light sensor
Display
LCD Type 10.1″ TFT-LCD
Max. Resoltuion 1280*800, Optional 1920*1200 800cd/㎡
Cover Glass Corning Gorilla Glass III, hardness 7H, light transmittance 85%
Luminance 450 cd/m2, Optional 1000 cd/m2 (1280*800)
Touchscreen 5-Point capacitive touch screenOptional AG+AF or AG+AF+Wet Hand/Glove
OS
OS Android 11 OS with GMS certificate
I/O Interface
POGO PIN 1*POGO PIN(USB+Charging)
USB 1*USB Type C(USB OTG+Charging) 1*USB 2.0, Type A
Video 1*mini HD
Audio 3.5mm Headphone Jack
DC Jack 1*DC Jack
TF Card Slot 1*TF Card Slot, up to 256GB
SIM Card Slot 1*Micro SIM Card Slot
Aviation Plug Expansion 1*CAN
LAN 1*RJ45
COM Port 1*RS232
Communication
WWAN GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA:B38/B39/B40/B41 CDMA2000 LTE-FDD: B1/B2/B3/B4/B5/B7/B8 LTE-TDD: B38/B39/B40/B41
WIFI 802.11a/b/g/n/ac, 2.4G+5.2GDual-bandWIFI
Bluetooth Bluetooth v2.1+EDR/v3.0+HS/v4.1LE
GNSS MT6631 GPS+BD+GLonass
Extended Functions
NFC 13.56MHz, support 14443A/14443B/15693
RFID Optional RFID/HF RFID/UHF RFID
ID Card Recognition Optional ID card recognition module
Barcode Scanner Optional 1D/2D barcode scanner, 2choose1
Power
Power Input 5V DC Input, 5V/3A power adapter Optional 5～24V DC power input, no built-in battery power supply
Battery 10000mAh, removable 3.8VLi-Ionbattery
Battery Life 10 hours (Play 1080PvideounderLCD50% backlight)
Environment
Drop 1.2m free fall to the wooden floor
IP Rating IP67
Operating Temp -10℃~50℃
Storage Temp. -30℃~70℃
Certificate
Certificate CE、ROHS、UN38.3、MSDS、IEC62133
Mechanical
Dimension (WxHxD) 274*181*23mm Optional UHF RFID module, thickness increases 9.5mm
Weight 1.25kg
Color Black
Accessory
Accessory Hand strap, 5V/3A power adapter
Optional Accessory Ofiice docking, Vehicle stand, Vehicle charger, Passive stylus pen, Type-C data cable, Type-C OTGcable,USB-DCcable
