TRW-10 Windows

TRW-10 Windows

Features:

Dimension of TRW-10 Windows

Benefits of TRW-10 Windows

Accessories of TRW-10 Windows

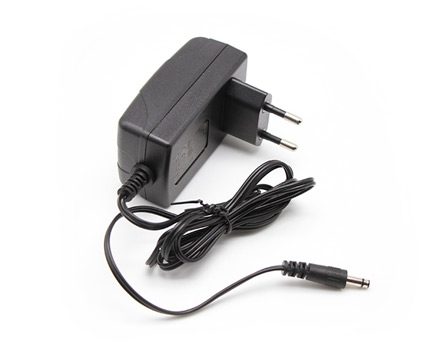

power adapter of 10 inch
rugged tablet

device of 10 inch rugged tablet

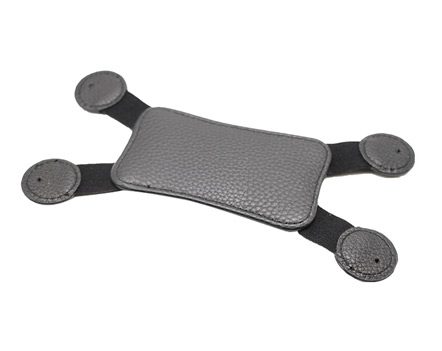

hand strap of 10 inch rugged tablet

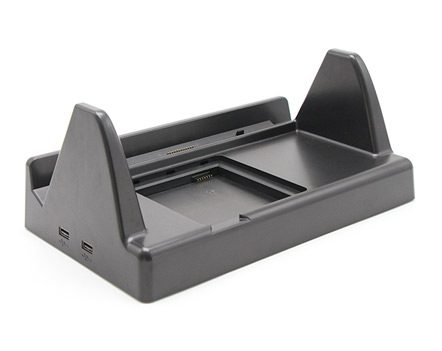

docking of 10 rugged tablet

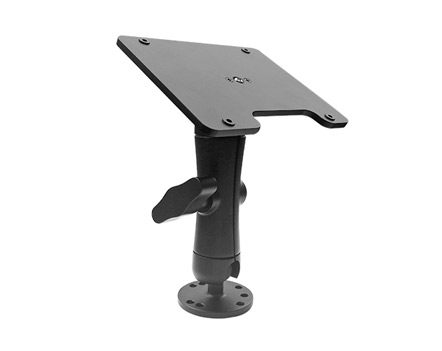

vasa stand of 10 rugged tablet

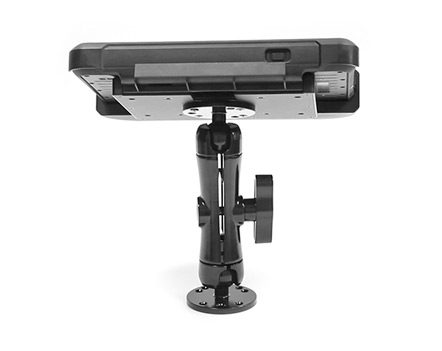

vehicle charging bracket of 10 rugged tablet

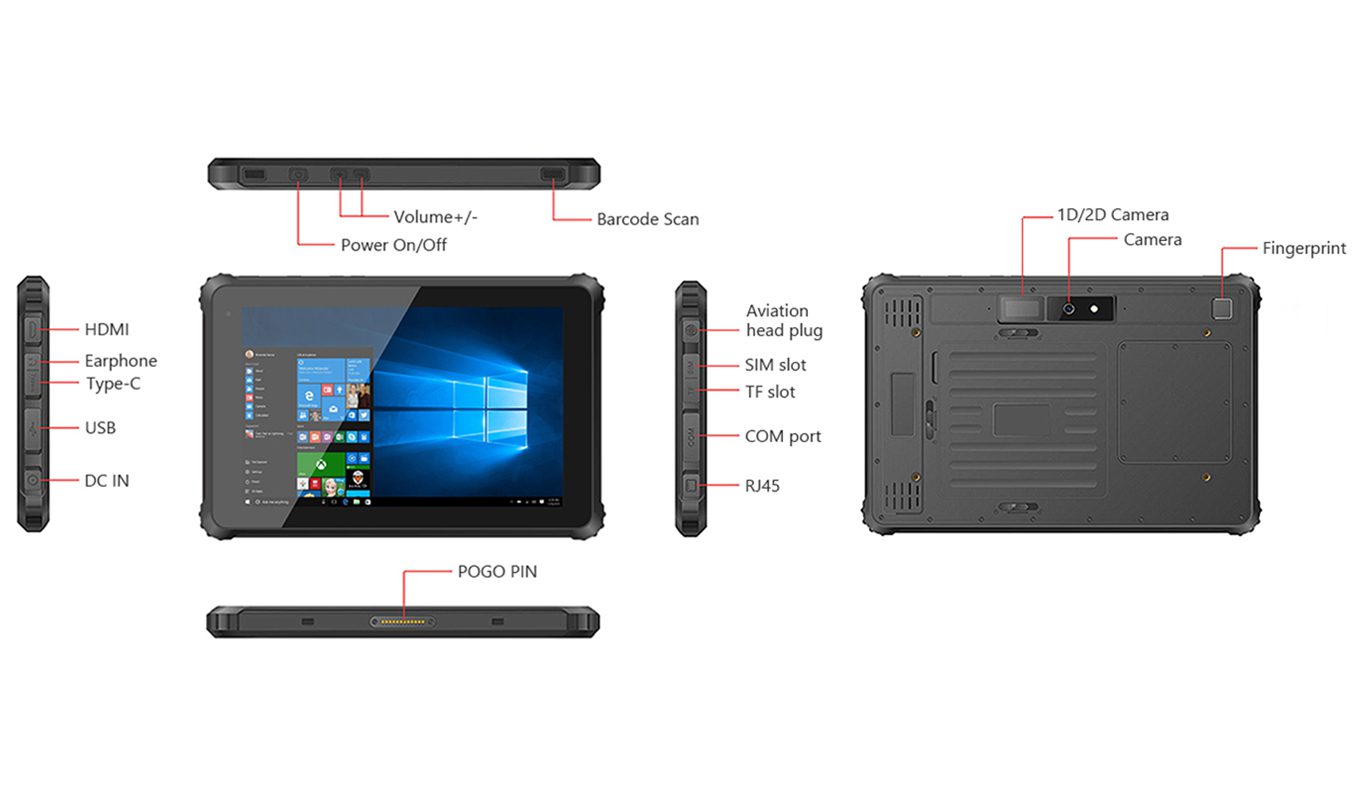

Six views of TRW-10 Windows

Accessories 10.1" Windows Tablet EM-117) Rugged PC

Scroll to Top

TPC-GS1081

10.1” Intel® Cherry Trail Ouad-coreZ8350
RuggedTablet
System Hardware
CPU Intel® Cherry Trail Quad-core Z8350 1.44GHZ~1.92GHz
Memory 4GB
Storage 64GB
Camera 2MP front camera with fixed focus 5MP rear camera with auto focus
Speaker Dual speaker, 1.2W/8Ω
MIC Dual MIC
Button Power button, Volume +/-, Barcode scanner shortcut key
LED Indicator Charging indicator
Sensor G-sensor
Display
LCD Type 10.1″ TFT-LCD
Max. Resoltuion 1280*800, Optional 1920*1200 800cd/㎡
Cover Glass Corning Gorilla Glass III, hardness 7H, light transmittance 85%
Luminance 450 cd/m2, Optional 1000 cd/m2 (1280*800)
Touchscreen Five-point capacitive touchscreen, uptoten-point; AG+AF coating optional
OS
OS Windows 10 pro/home/IOT optional
I/O Interface
POGO PIN 1*POGO PIN(USB+Charging)
USB 1*USB Type C(USB OTG+Charging) 1*USB 2.0, Type A
Video 1*mini HD
Audio 3.5mm Headphone Jack
DC Jack 1*DC Jack
TF Card Slot 1*TF Card Slot, up to 256GB
SIM Card Slot 1*Micro SIM Card Slot
Aviation Plug Expansion 1*CAN
LAN 1*RJ45
COM Port 1*RS232
Communication
WWAN EC-25EC (Europe/Middle East/ Africa/Korea/Thailand) LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
WIFI 802.11a/b/g/n/ac, 2.4G+5.2GDual-bandWIFI
Bluetooth Bluetooth 4.0 (BLE)
GNSS U-blox GPS+BeiDou+GLONASS
Extended Functions
NFC Optional, 13.56MHz, support 14443A/14443B/15693
RFID Optional RFID/HF RFID/UHF RFID
ID Card Recognition Optional ID card recognition module
Barcode Scanner Optional 1D/2D barcode scanner, 2choose1
Power
Power Input 5V DC Input, 5V/3A power adapter
Battery 10000mAh, removable 3.8V Li-Ion battery
Battery Life 8 hours (Play 1080Pvideounder LCD50%backlight)
Environment
Drop 1.2m free fall to the wooden floor
IP Rating IP67
Operating Temp -10℃~50℃
Storage Temp. -30℃~70℃
Certificate
Certificate CE、ROHS、UN38.3、MSDS、IEC62133
Mechanical
Dimension (WxHxD) 274*181*23mm Optional UHF RFID module, thickness increases 9.5mm
Weight 1.25kg
Color Black
Accessory
Accessory Hand strap, 5V/3A power adapter
Optional Accessory Ofiice docking, Vehicle stand, Vehicle charger, Passive stylus pen, Type-C data cable, Type-C OTGcable,USB-DCcable
